PVC Window Shapes and Forms

WINDOWS Styles

To help you decide on the suitable window for your home, we have take our time to provide you with as many options as possible.  Please go through these options and contact us if there is a requirement that is not listed below. Our technical know how together with our top leading German suppliers, manufacturers and partners, we are able to assist any requirements.

 Different Windows Styles available at AM Projects Malta:



Fixed Element

W1 - This is a fixed element. Ideal for area where an unobstructed view is required, for small openings or/and very large openings. Measurements can go up to 3500mm x 2200mm in one double glazed pane.



W2 - Fixed element with a blind leaf for optical reasons. Measurements can go up to 3500mm x 2200mm in one double glazed pane.



One Leaf Windows

W3 -This is a one leaf window opening inwards turning and tilting. The hinges can be on the left or right to open inwards to the right or left in accordance with client’s wishes and convenience.

Tilt function can be taken off if not required.

Maximum recommended measurements in one leaf would be 1200mm x 1800mm or 1500mm x 1500mm or 1600mm x 1400mm.



W4 - Tilting only, measurements going up to w3500mm x 2200mm

This window can be used in the tilting position.



 .

High Window Option

W5 A

W5 B

W5 C

W5 D

W5 E

W5 F

W5  - High windows options. One leaf opening inwards turning and tilting connected to a fanlight at the top. The fanlight can be fixed, fixed with a blind leaf, opening inwards turning and tilting, or tilting outwards from the bottom. Maximum measurements 1100mm x 2800mm or 1300mm x 2500mm

These fanlights can be opened electrically or manually by means of a lever or crank.

Tilting and Turning Windows

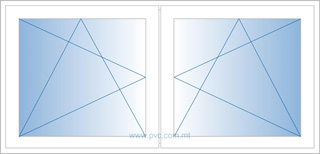

W6 A – 2 leaf window with a mullion in the middle with both sides tilting and turning inwards.

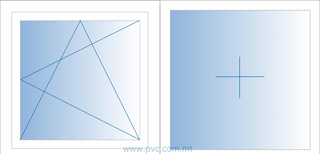

W6 B – 2 leaf elements, one side turning and tilting and one side fixed with or without a blind leaf.

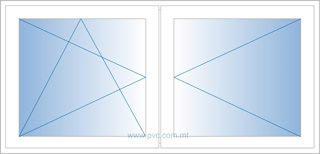

W6 C – 2 leaf element opening inwards, one side turning and tilting and one side turning

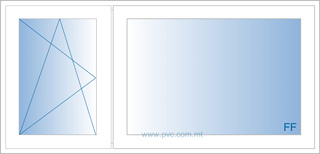

W6 D – 2 leaf element, one side turning and tilting and one side fixed. You can choose the side to have fixed. You can also opt to have the hinges on the right so the window opens 180 degrees onto the left element.



Maximum measurements 3000mmx 1500mm or 2400mm x 1800mm

The Combination collection

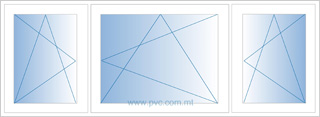

W7 A –  3 leaf elements, with all three windows opening inwards turning and tilting, or with the middle leaf fixed with a blind leaf. Position of hinges depends on client’s preferences.

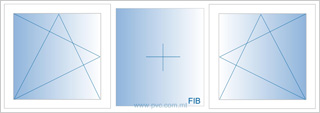

W7 B - 3 elements, the side elements opening inwards turning and tilting with a middle fixed element with a blind leaf.

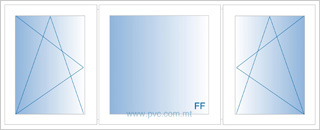

W7 C – 3 elements, with two side elements opening inwards turning and tilting with the middle element fixed.

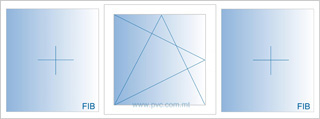

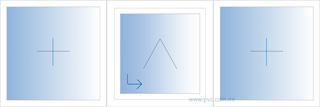

W7 D – 3 elements, with two sides fixed and the middle element opening inwards tilting and turning.



W8 – Four Leaf  – all opening inwards tilting and turning

W9 – The Sliding Range - from our sliding options PSK (9) – sliding and tilting to our HST (10) – lifting and sliding options

.

.

W9 A

W9 A - Two leaf element with one leaf tilting and sliding connected to a side fixed.

W9 B

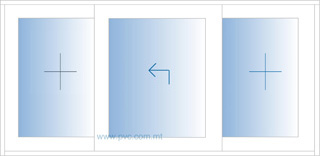

W9 B - Three leaf element with one leaf tilting and sliding connected to two fixed elements on both sides.

W9 C

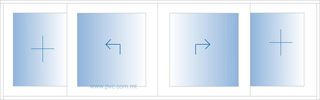

W9 C - Four leaf element, two middle leaf tilting and sliding to the sides, two fixed sides on the left and right side.

W10 A

W10 A - Two leaf element with one leaf lifting and sliding connected to a side fixed.

W10 B

W10 B - Three leaf element with one leaf lifting and sliding connected to two fixed elements on both sides.

W10 C

W10 C - Four leaf element, two middle leaf lifting and sliding to the sides, two fixed sides on the left and right side.

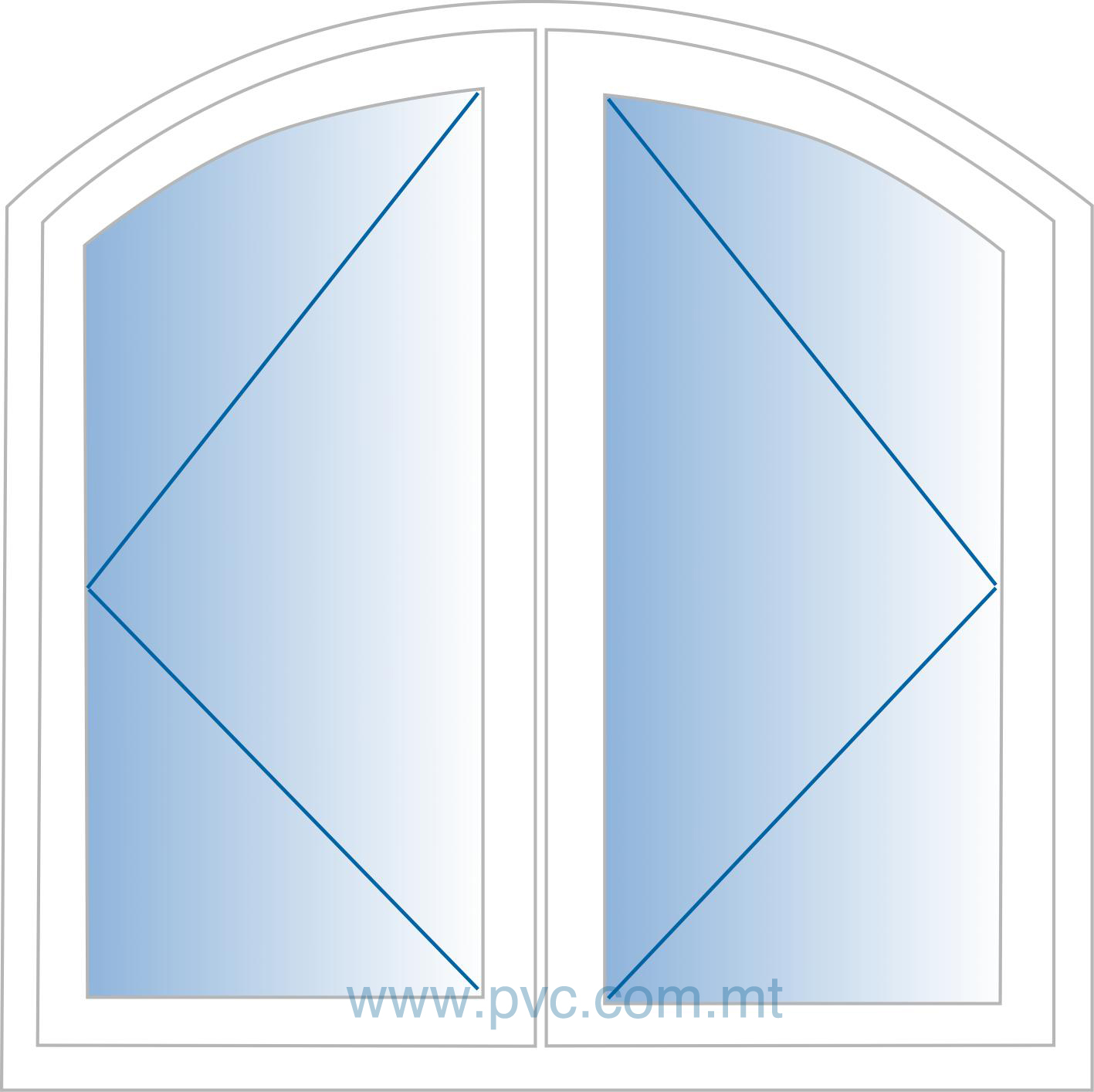

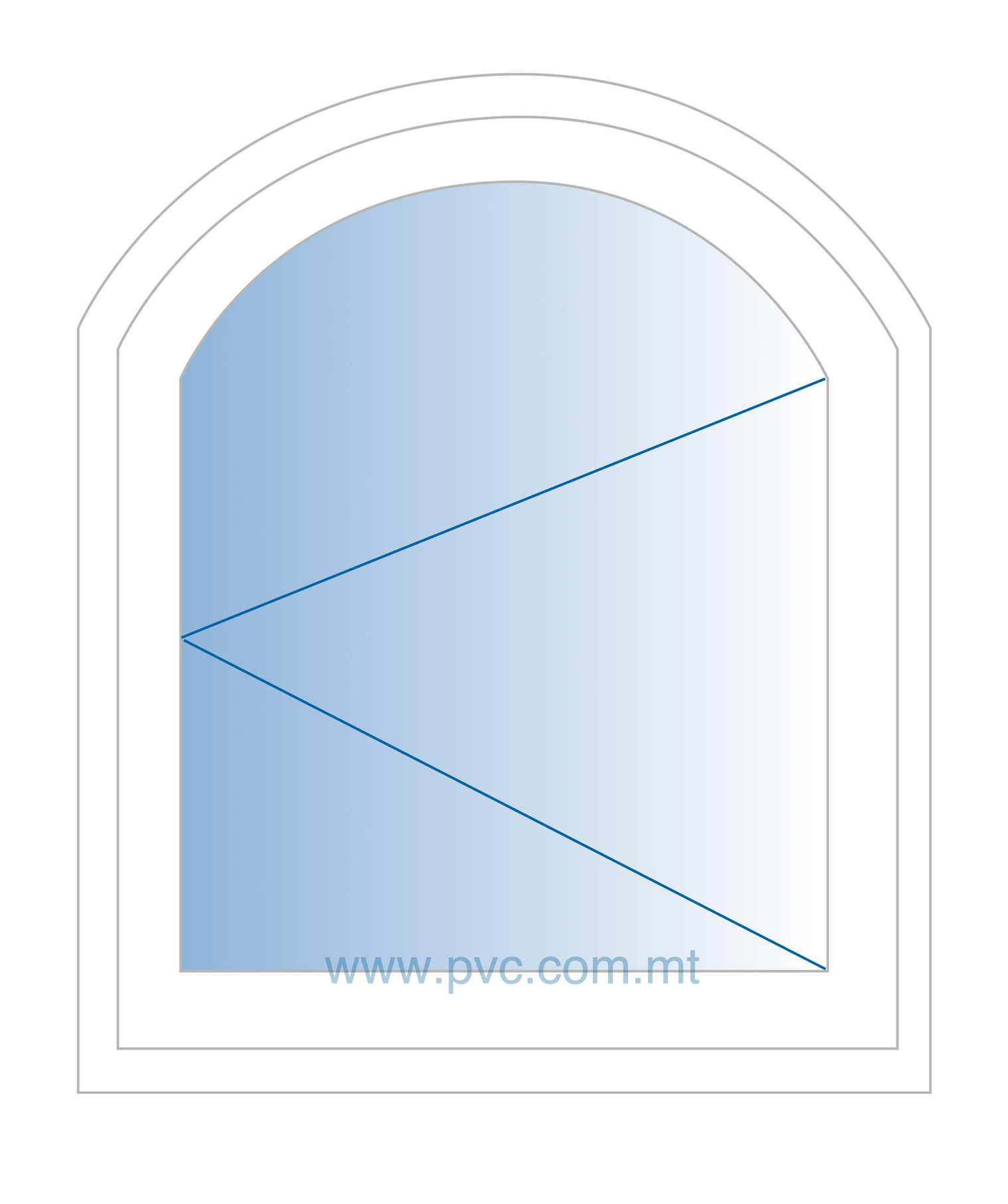

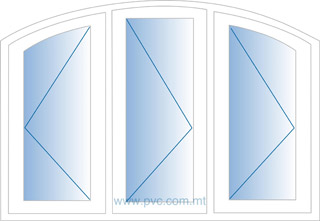

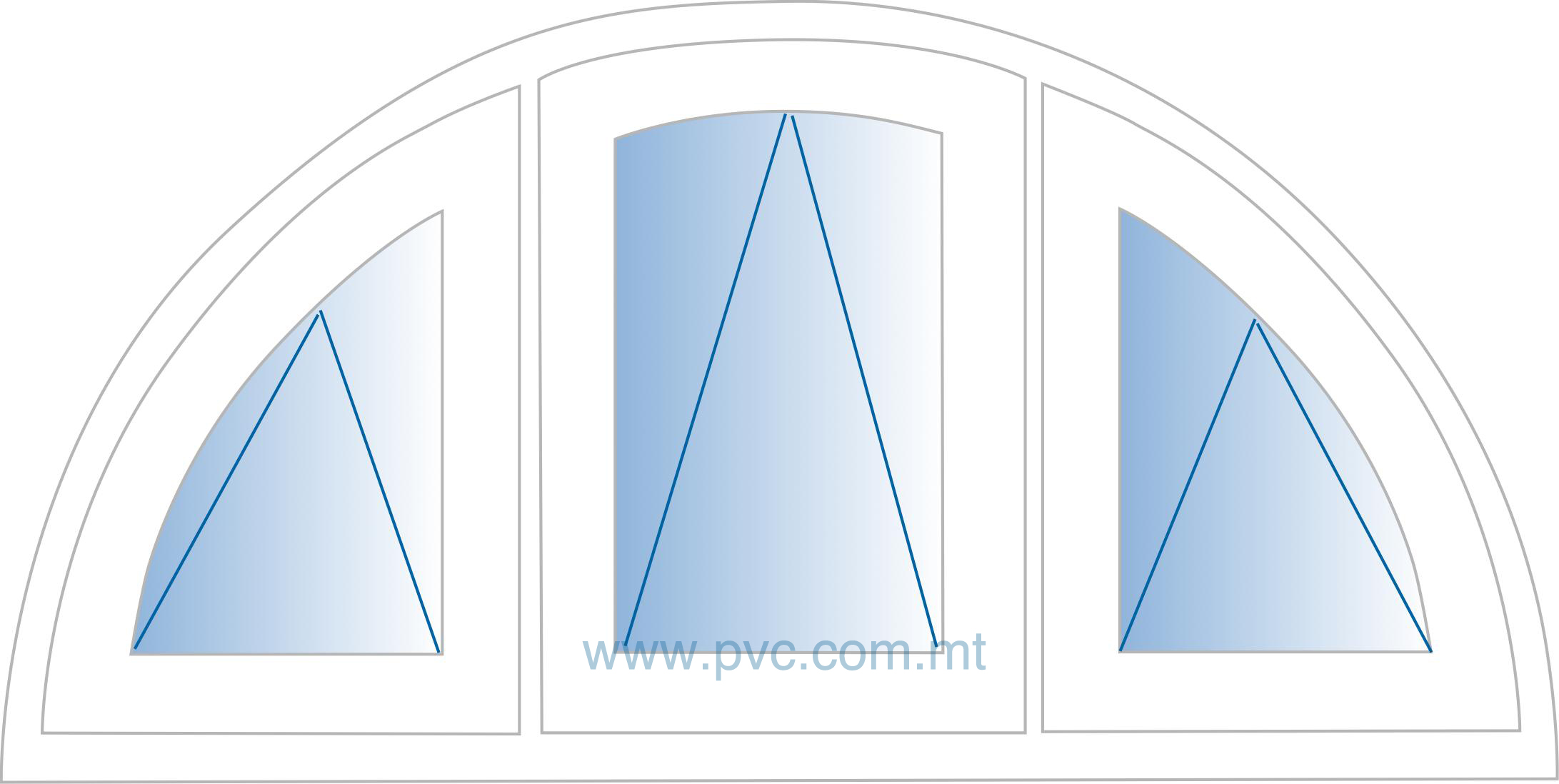

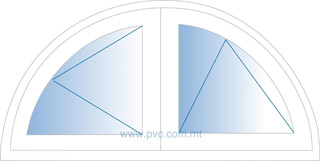

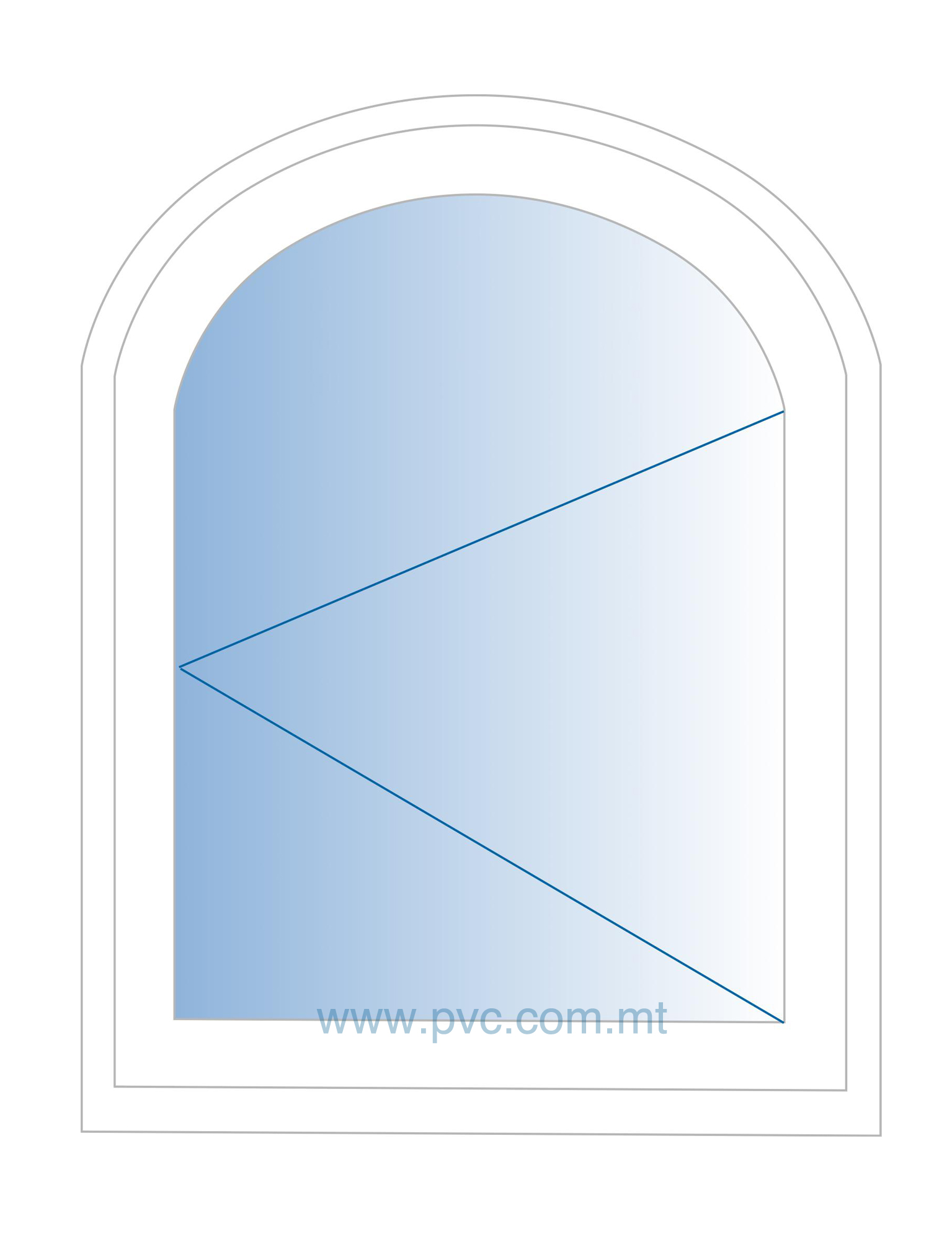

W11 - Arches - Choose the shape of your choice from this wide variety

W11 A

W11 B

W11 C

W11 D

W11 E

W11 F

W11 G







W11 H

W11 I

W11 J

W11 K

W11 A

W11 B

W11 C

W11 D



W11 E

W11 F

W11 G

W11 H



W11 I

W11 J

W11 K

W11 L
